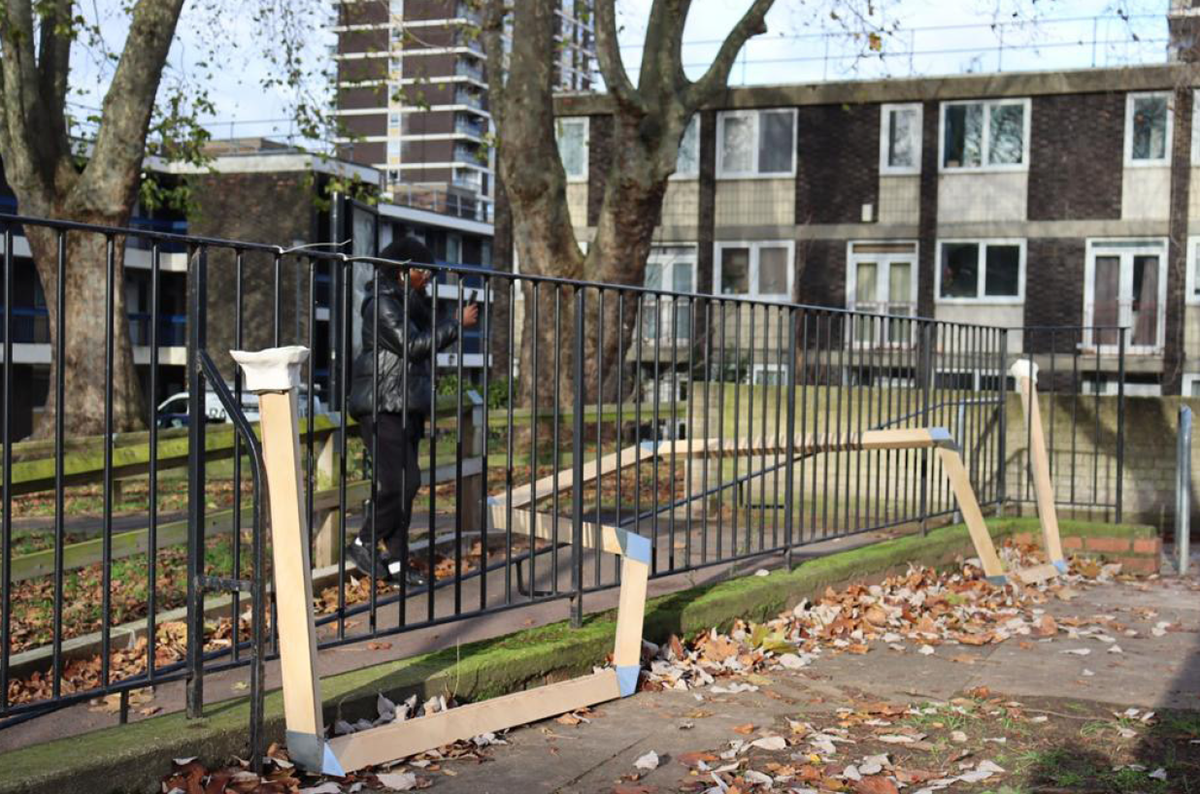

Talking tube build on site against the fence.

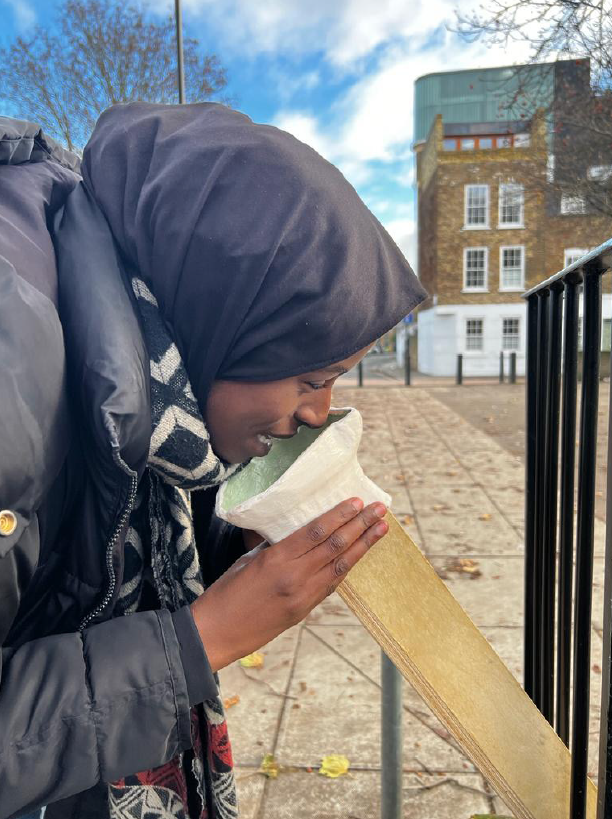

Child Interraction 1:2 - A2
Child interracting with the model and shouting to be heards. Printed image along side a sketched model.

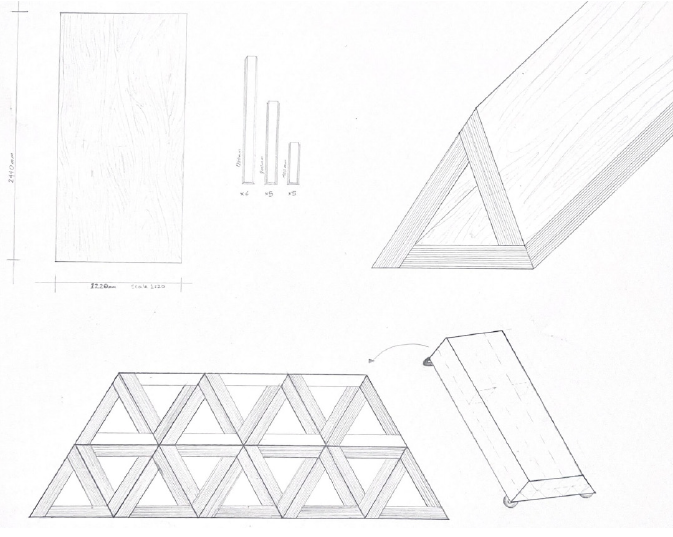

Storage and Close up of the Wood Piece 1:2 and 1:1- A1
How the wooden pieces of the model can be fitted perfectly together and storage away. On the right is a trolly, which can fit all 16 pieces. This would make it eay to transport
Metal connector and Mouth Piece 1:1 & 1:2
Connectos, both the metal and mouth piece can be stored together into a backpack. The top flap opens upwards to show the metal pieces. The back flap opens upwards to show the safely stored ceramic pieces.

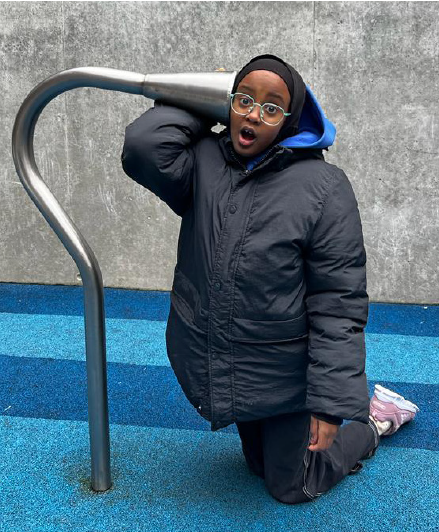

In use and the inspiration.

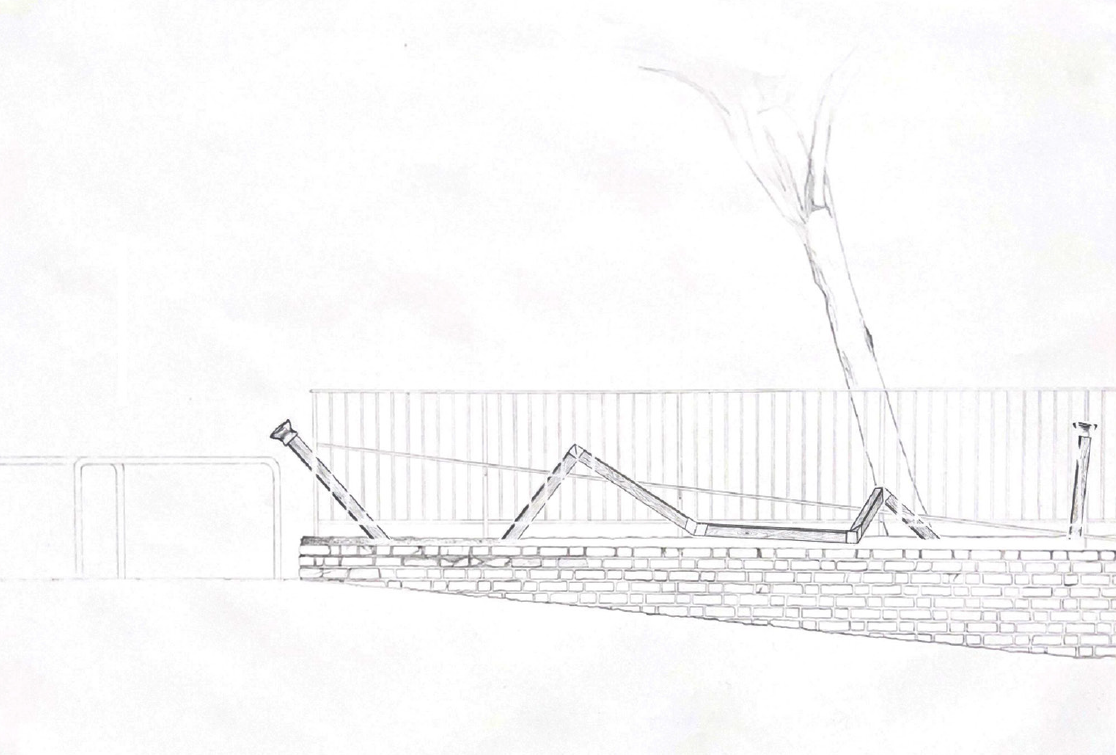

Section View 1:10 - A1
Section illustrates the downhill of the site, model in full length would allow it to be used but not be seen by the other person. Heard, but not seen.
The model at 1:10 scale sketched using tracing paper
